Reduces temperature rising of the display due to direct sunlight entering the HUD unit.
Reduces visibility deterioration caused by double images.
Advanced Films
- Part Number
Thermal barrier film
MUAH6 IRC102 (Under development)
Reducing double images film
GSP Series
(Under development)
- Application
- Detailed use
・Automotive
Head up Display Units
Properties
NIR Cut 75% or more
<MUAH6>
<MUAH6>
Visible light transmittance
80% or more (450nm) <MUAH6>
80% or more (450nm) <MUAH6>
Easy to Apply
<MUAH6>
<MUAH6>
Thermal barrier film | Concept
Protect HUD units from direct sunlight. To apply, simply replace with the current cover.
Reducing double images film | Concept
Reduces double images caused by HUD dust covers.
Thermal barrier film | Sunlight shielding performance

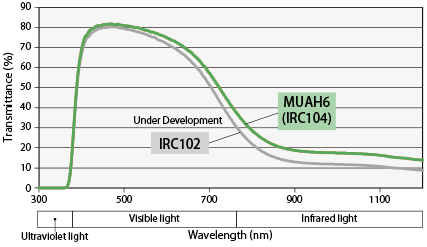

Thermal barrier film | Transmittance Spectrum
General properties
| Item | Unit | Thermal barrier films | |
| MUAH6 | IRC102 (Under development) | ||
| Layer structure | – |
|
|
| Total light transmittance | % | 79.0 | 77.2 |
| NIR light transmittance (at 1000 nm) | % | 22.5 | 9.9 |
| Haze | % | 2.0 | 2.2 |
| Pencil hardness (750g load) | – | 3-4H | 3-4H |
| Flammability (FMVSS No.302) | – | Pass | Pass |
| Item | Unit | Reducing double images film GSP Series (Under development) |
|
| Layer structure | – |
|
|
| Total light transmittance | % | 93.0 | |
| Haze | % | 0.2 | |
| Flammability (FMVSS No.302) | – | Pass | |
The above data are typical values and not guaranteed values.
Specifications are subject to change without notice.
