Highly heat-resistant halogen-free multi-layer circuit board materials | R-156AS, R-156YS, R-1566S

Highly heat resistant Halogen-free Multi-layer circuit board materials R-156AS, R-156YS, R-1566S



  1. Added highly heat resistant and tracking resistance to automotive quality R-1566 to improve the reliability of ECU boards used under severe conditions.

Circuit Board Materials

  • Part Number
  • Application
  • Detailed use
Automotive
・Automotive
Automotive ECU, Automotive module, HEV/EV power control unit, DC/DC converter board, etc.

New part number *

  •

Laminate R-156AS

Prepreg R-155AS

Laminate R-156YS

Prepreg R-155YS

  • * UL certification products

Halogen-free

Existing part number

  •

Laminate R-1566S

Prepreg R-1551S

Properties

Tg (DSC)
175°C
Td (TGA)
355°C
CTI ≧ 600V
(R-156AS*¹, R-156YS)

*1 Thickness: 0.8mm or less    

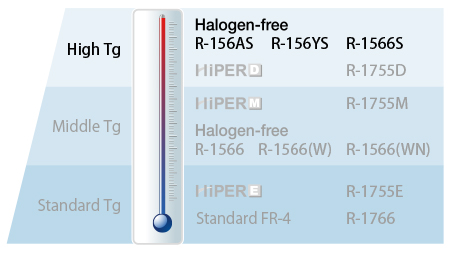

Positioning of Glass transition temperature(Tg)

Positioning of Glass transition temperature(Tg)

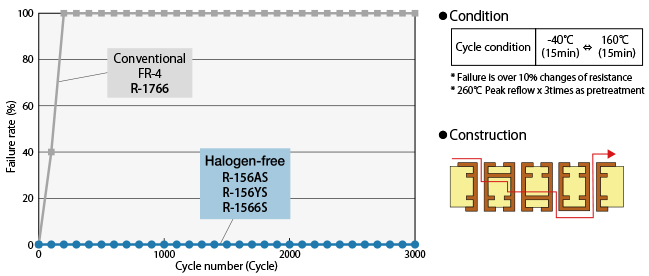

Through-hole reliability

Through-hole reliability

Insulation reliability

Insulation reliability

General properties

ItemTest methodConditionUnitHalogen-free
R-156AS
Halogen-free
R-156YS
Halogen-free
R-1566S
Our conventional
Halogen-free
R-1566(W)
Glass transition temp. (Tg)DSCA°C175148
TMA170145
Thermal decomposition temp. (Td)TGAA°C355350
CTE z-axisα1IPC-TM-650 2.4.24Appm/°C4040
α2180180
T288 (with copper)IPC-TM-650 2.4.24.1Amin103
Peel strength1oz (35µm)IPC-TM-650 2.4.8AkN/m1.61.8
FlammabilityUL MethodC-48/23/5094V-0*¹94V-1No certification94V-0

The sample thickness is 0.8mm.
*1 Thickness: 0.8mm maximum

Our Halogen-free materials are based on JPCA-ES-01-2003 standard and others.
Contain; Chlorine:≤0.09wt%(900ppm), Bromine:≤0.09wt%(900ppm),
Chlorine+Bromine:≤0.15wt%(1500ppm)

The above data are typical values and not guaranteed values.
