Contribute to IC substrates as thinner and smaller and low warpage.
Semiconductor Device Materials
- Ultra-low transmission loss Circuit board materials for IC substrate/ Module
R-G545L(Low Dk glass cloth), R-G545E(Normal glass cloth) - Low CTE Ultra-thin IC substrate materials
R-G515S(Low CTE glass cloth), R-G515E(Normal glass cloth) - High elasticity Low CTE Ultra-thin IC substrate materials
R-151YE / R-1515E - Low CTE IC substrate materials Designed to Improve Reliability R-1515V
- High elasticity Low CTE IC substrate materials R-1515W
- Low CTE IC substrate materials R-1515A
- There might be some differences in UL certification conditions between the existing part numbers and the new part numbers. Please contact a sales representative in charge or this form for the detail.
Any letters with parentheses ( ) at the end of a part number are for identification code in our company and are not included in the part numbers registered for UL certification.

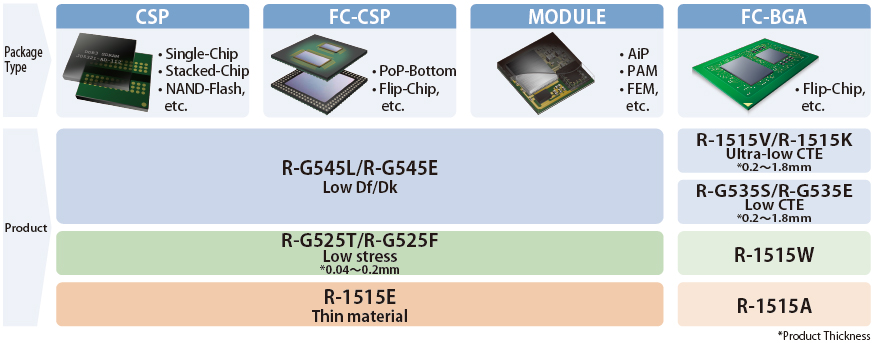

Line-up
General properties
| Item | Test method | Condition | Unit | R-1515V | R-1515K | R-1515W | |
|---|---|---|---|---|---|---|---|
| Glass transition temp(Tg) | DMA*² | A | °C | 260 | 260 | 250 | |
| CTE x-axis / y-axis | α1 | Internal method | A | ppm/°C | 3-5 | 7 | 9 |
| Dielectric constant(Dk)*¹ | 1GHz | IPC-TM-650 2.5.5.9 | C-24/23/50 | － | 4.4 | 4.6 | 4.8 |
| Dissipation factor(Df)*¹ | 0.016 | 0.015 | 0.015 | ||||
| Flexural modulus*¹ | JIS C 6481 | 25°C | GPa | 30 | 27 | 35 | |
| 250°C | 14 | 12 | 21 | ||||
| Item | Test method | Condition | Unit | R-1515A | R-G545L | R-G545E | |
|---|---|---|---|---|---|---|---|
| Glass transition temp(Tg) | DMA*² | A | °C | 205 | 230 | 230 | |
| CTE x-axis / y-axis | α1 | Internal method | A | ppm/°C | 12 | 10 | 10 |
| Dielectric constant(Dk)*¹ | 1GHz | IPC-TM-650 2.5.5.9 | C-24/23/50 | － | 4.8 | 3.6 | 4.1 |
| Dissipation factor(Df)*¹ | 0.015 | 0.002 | 0.002 | ||||
| Flexural modulus*¹ | JIS C 6481 | 25°C | GPa | 27 | 23 | 27 | |
| 250°C | 10 | 10 | 13 | ||||
| Item | Test method | Condition | Unit | R-G515S | R-G515E | R-151YE R-1515E |
|
|---|---|---|---|---|---|---|---|
| Glass transition temp(Tg) | DMA*² | A | °C | 220-240 | 220-240 | 270 | |
| CTE x-axis / y-axis | α1 | Internal method | A | ppm/°C | 4-6 | 6-8 | 9 |
| Dielectric constant(Dk)*¹ | 1GHz | IPC-TM-650 2.5.5.9 | C-24/23/50 | － | 4.2 | 4.4 | 4.7 |
| Dissipation factor(Df)*¹ | 0.008 | 0.008 | 0.011 | ||||
| Flexural modulus*¹ | JIS C 6481 | 25°C | GPa | 28 | 24 | 33 | |
| 250°C | － | － | 18 | ||||
The sample thickness is 0.1 mm.
*1 0.8mm
*2 Measurement in tensile mode. R-1515W, R-1515A: Measurement in bending mode.
The above data are typical values and not guaranteed values.
Our Halogen-free materials are based on JPCA-ES-01-2003 standard.
Contain; Chlorine:≤0.09wt%(900ppm), Bromine:≤0.09wt%(900ppm),
Chlorine+Bromine:≤0.15wt%(1500ppm)
